Manhole Box Systems are lightweight shoring panels designed for use around manholes, pits and pump stations. These come in three sizes catering for different applications. All sizes of manhole units come in multiple widths.
- For use in dig and place
- Can be stacked
- Allows faster manhole construction without the need for the worker to enter the excavation.
As is required for installing in dig and push on installation or removal.
LITE guard Manhole Box Trench Shield Specifications
| Panel Type | Panel Length | Panel Height | Safe Working Load (kN/m²) | Panel Thickness | Under Strut Clearance | Internal Clearance Strut to Strut | Total unit weight incl. 1000mm struts |
|---|---|---|---|---|---|---|---|
| Unit | 2000mm | 2000mm | 30 | 56mm | 560mm | 1800mm | 400kg |
| Unit | 2400mm | 2400mm | 90 | 90mm | 1150mm | 2200mm | 1000kg |
| Unit | 3000mm | 2400mm | 60 | 90mm | 1150mm | 2800mm | 1183kg |

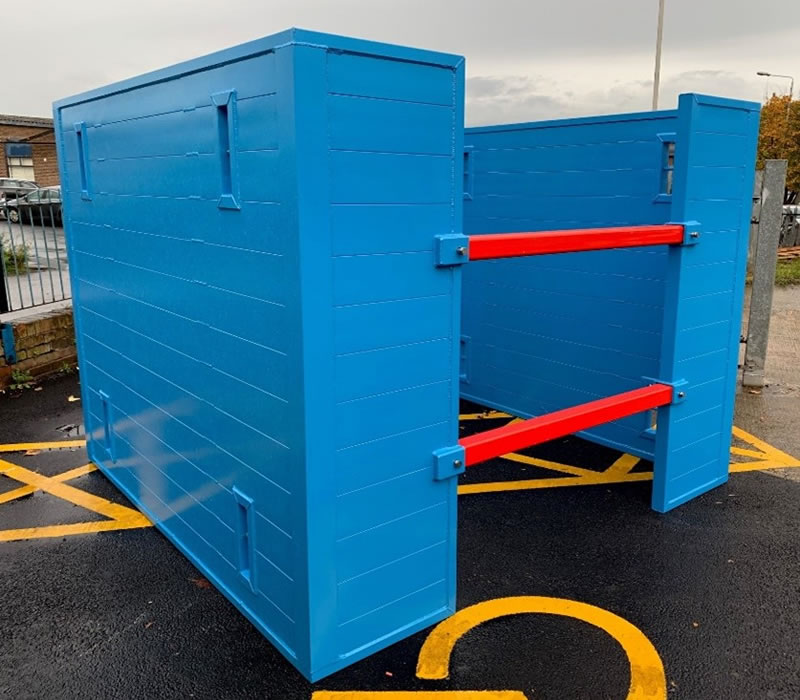

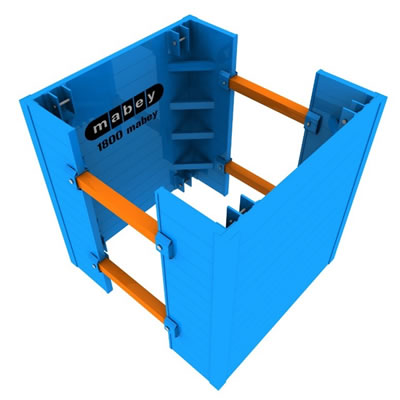

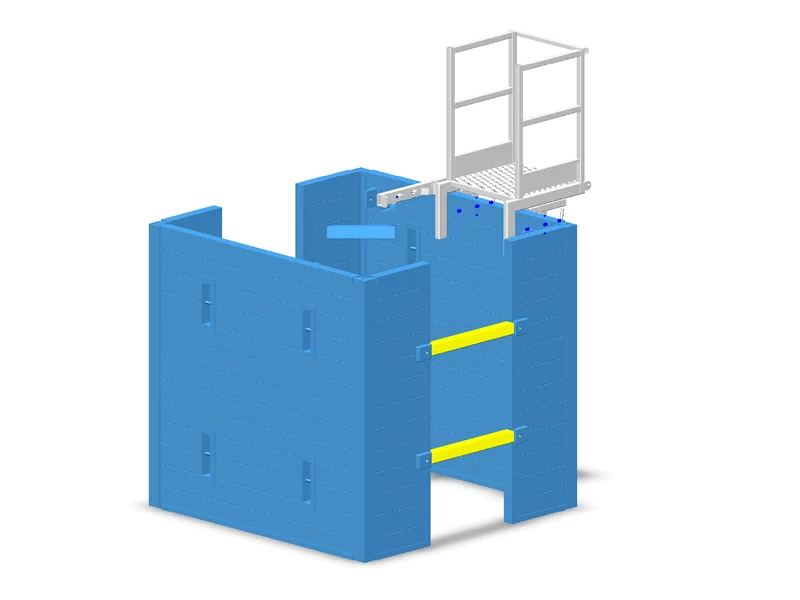

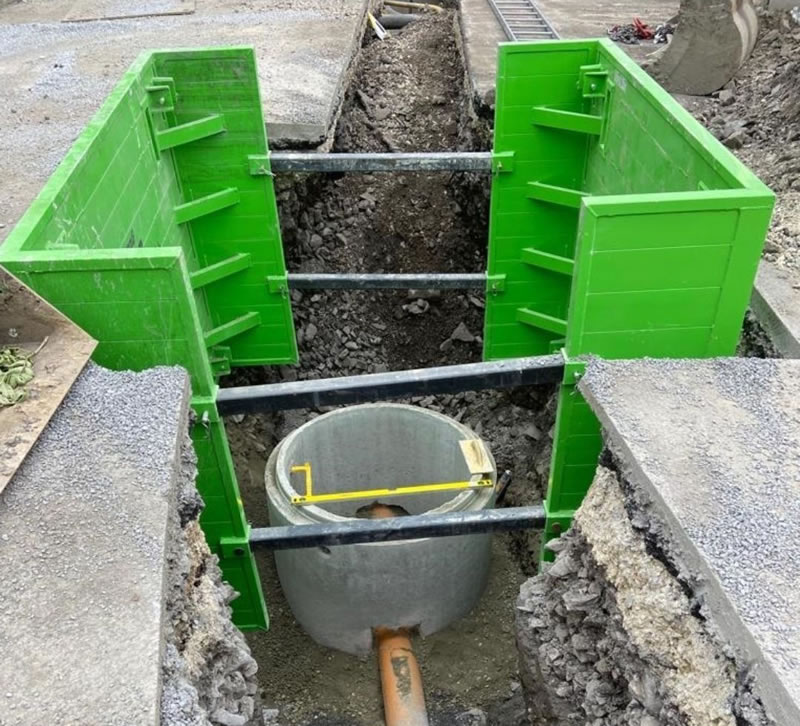

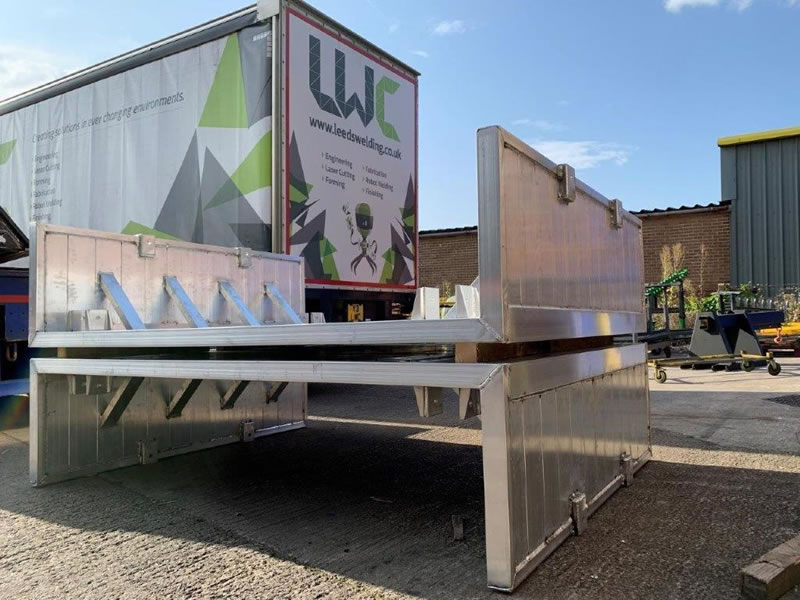

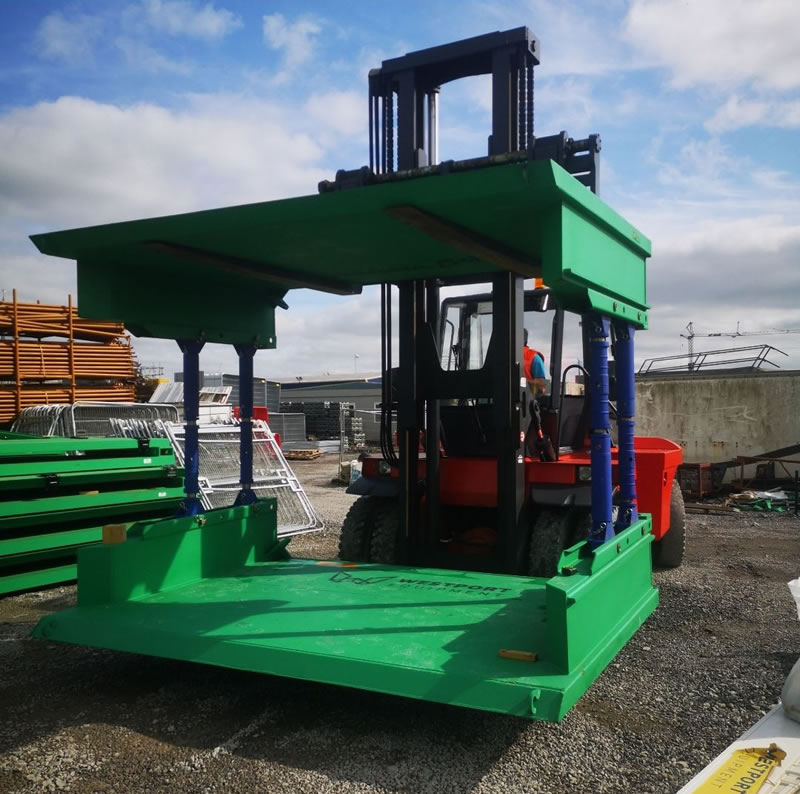

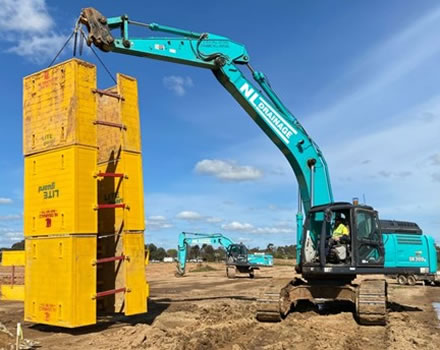

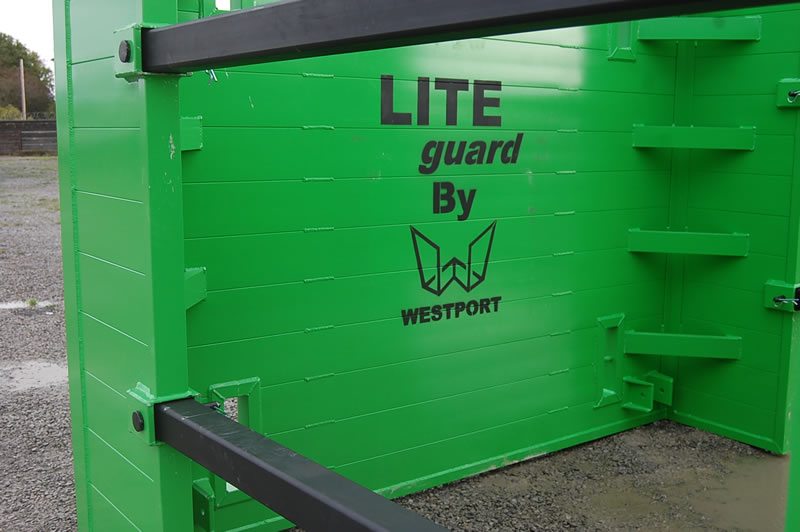

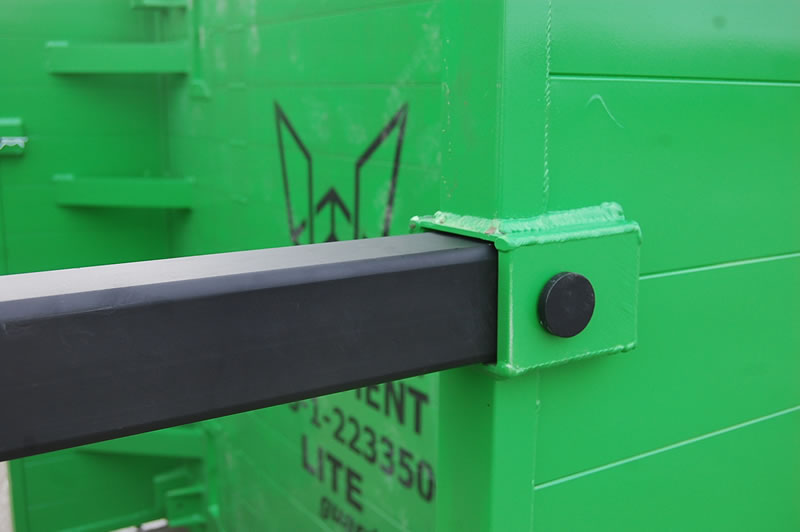

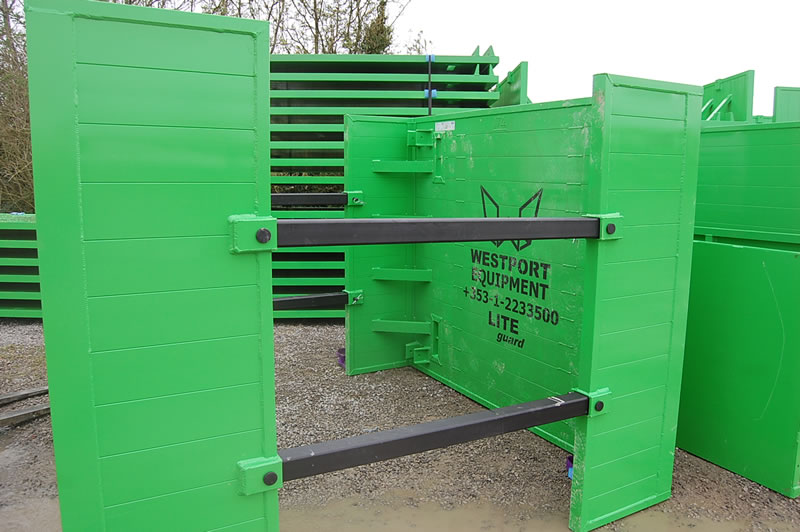

LITE guard Manhole Boxes Trench Shoring Gallery
