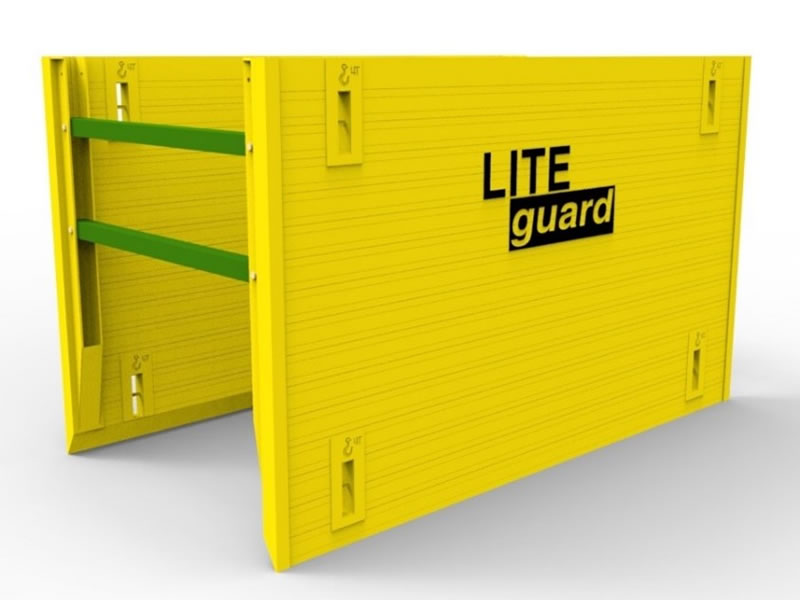

Super Shields are large Trench Shields designed for use in large scale excavation work including bore pits and the laying of long pipes.
- Great Contractors shield
- Lowers with built in cutting edges
- Lowers can be inverted for stacking or add an upper unit
- Available with high clearance spreader bars to provide maximum under strut clearance

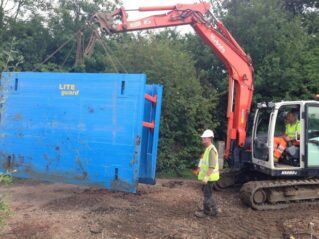

- Machine size required 8.0 tonne and upward
- Can be used in a dig and push or dig and place method
LITE guard Super Shield Trench Box Specifications
| Panel Type | Panel Length | Panel Height | Safe Working Load (kN/m²) | Panel Thickness | Under Strut Clearance | Internal Clearance Strut to Strut | Total unit weight incl. 1000mm struts |
|---|---|---|---|---|---|---|---|
| Lower | 3100mm | 1950mm | 60 | 90mm | 950mm | 2800mm | 737kg |
| Upper | 3100mm | 1950mm | 60 | 90mm | 550mm | 2800mm | 780kg |
| Lower | 3600mm | 2400mm | 43 | 90mm | 1350mm | 3300mm | 978kg |
| Upper | 3600mm | 1950mm | 43 | 90mm | 550mm | 3300mm | 870kg |
| Lower | 4000mm | 2400mm | 35 | 90mm | 1350mm | 3700mm | 1086kg |

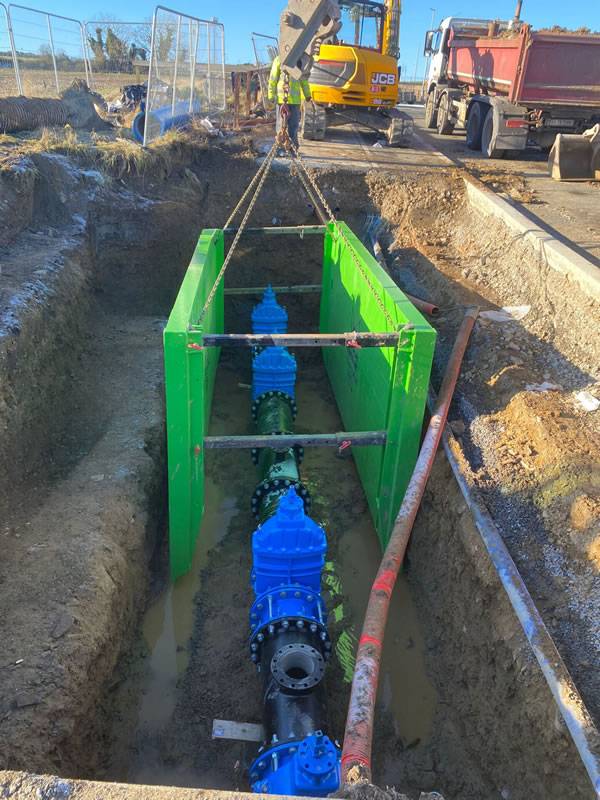

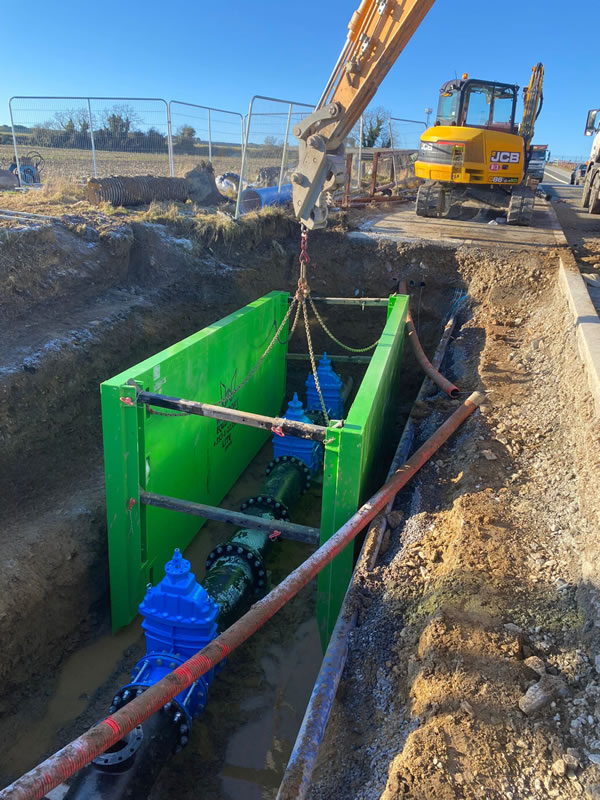

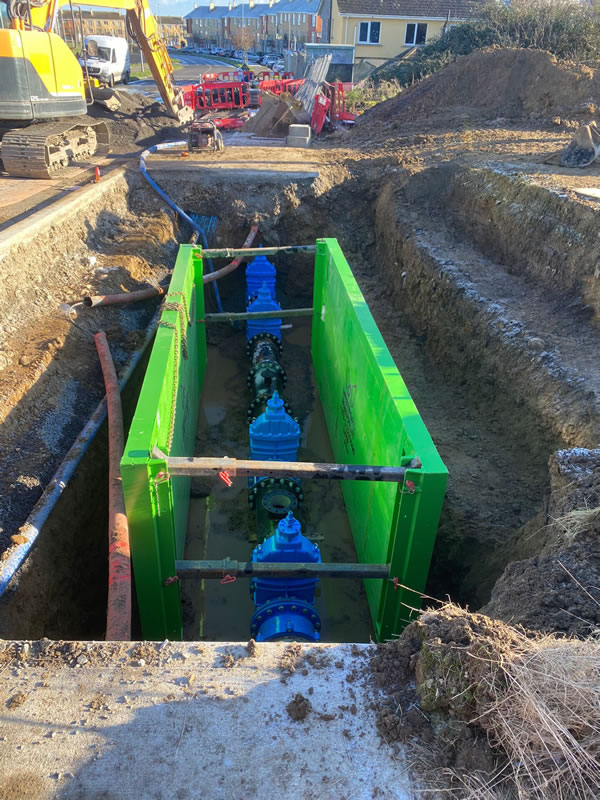

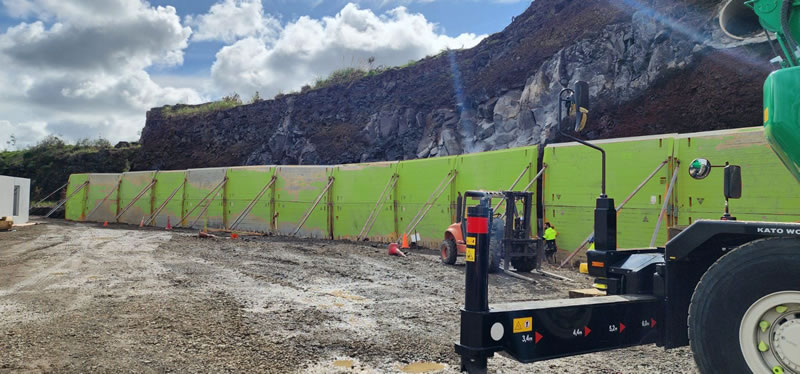

LITE guard Super Shields Trench Shoring Gallery
